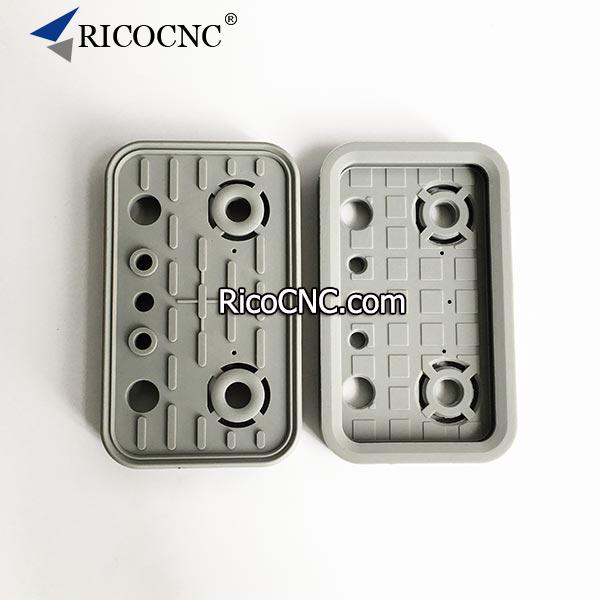

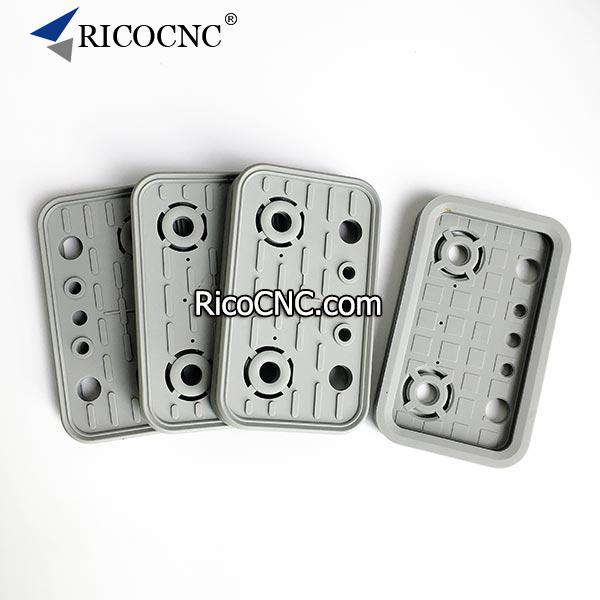

125x75x17mm Top Rubber Suction Pads for CNC Vacuum Pods 4-011-11-0079

125x75x17mm Top Rubber Suction Pads for CNC Vacuum Pods 4-011-11-0079

Model: 125x75x17mm
Schmalz part no.: 10.01.12.00011
Brand: RICOCNC
Original: China
Product description: This upper suction plates, Homag/Week part No.: 4-011-11-0079, Schmalz No.: 10.01.12.00011, is the replacement seal for VCBL vacuum block 125 x 75.
INQUIRY EMAIL

4-011-11-0079 125x75x17mm Top Rubber Suction Pads for CNC Vacuum Pods
Schmalz part no.: 10.01.12.00011

This upper suction plates, Homag/Week part No.: 4-011-11-0079, Schmalz No.: 10.01.12.00011, is the replacement seal for VCBL vacuum block 125 x 75. It is the top rubber cover for 10.01.12.00213, 4-011-11-0368, 10.01.12.00951, 10.01.12.00447, 4-011-11-0073, 10.01.12.00506, 10.01.12.00628, 10.01.12.00629, 10.01.12.00644 vacuum pods.

125x75 top rubber suction pads size:
Dimensions (LxW): 125 x 75 mm
Height H: 16.5 mm

Vacuum pod covers are used for hold-down and clamping on major European CNC woodworking machining center equipment. Such as Homag/Weeke, Felder, Format 4, MasterCAM, IMA, HOLZ HER, etc.
