4-016-09-0033 Console Strainer for Homag Weeke CNC

4-016-09-0033 Console Strainer for Homag Weeke CNC

HOMAG/Weeke No.: 4-016-09-0033
Schmalz No.: 10.07.01.00211

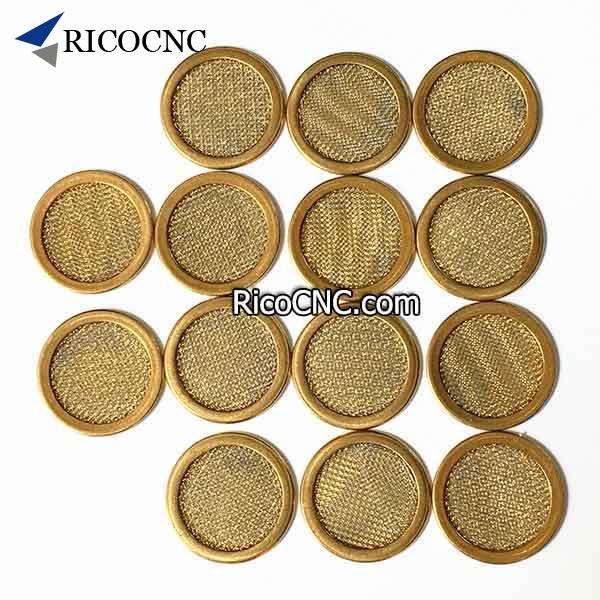

15mm Dia. brass micro filter
CNC console strainer
Product description: This small disc filter is the CNC beam filtration strainer to protect against dust and dust entering the vacuum circuits of beam console tables K1 and K2. Widely use with Homag Weeke PTP CNC certers.
INQUIRY EMAIL

4-016-09-0033 filter

4-016-09-0033 Console Strainer for Homag Weeke CNC

This small disc filter is the CNC beam filtration strainer to protect against dust and dust entering the vacuum circuits of beam console tables K1 and K2. Widely use with Homag Weeke PTP CNC certers.
The vacuum strainer is made of two layers of non-woven stainless steel with a filtration of 0.1 mm and 0.07 mm. The filter net clamped in a brass ring.

Brass Micro Filter Parameters:
Outer diameter: 15mm
Thickness: 0.8mm
Schmalz No.: 10.07.01.00211
HOMAG – Weeke No.: 4-016-09-0033
Homag console strainer
When the Schmalz 15mm strainer damaged, it should be replaced immediately, in case of damage the vacuum pump.
When replacing magnetic valves, the replacement of the small disc filter is also necessary.

RicoCNC is the one-stop shop for CNC router parts, Homag Weeke Spare parts, Schmalz vacuum cups and suction plates, etc. If any needs, welcome your inquiry.
