CNC Router Bits

Acrylic Carving Tools Plexiglass Cutting Bits Single Flute CNC Router Bits

Model: Acrylic Router Bits
Material: Solid Carbide
Brand: RICOCNC
Original: China
Product description: These solid carbide single flute spiral router bits are made especially for acrylic cutting. Specifically designed for cutting acrylic, single flute, spiral up cutter, made from high quality solid car
INQUIRY EMAIL

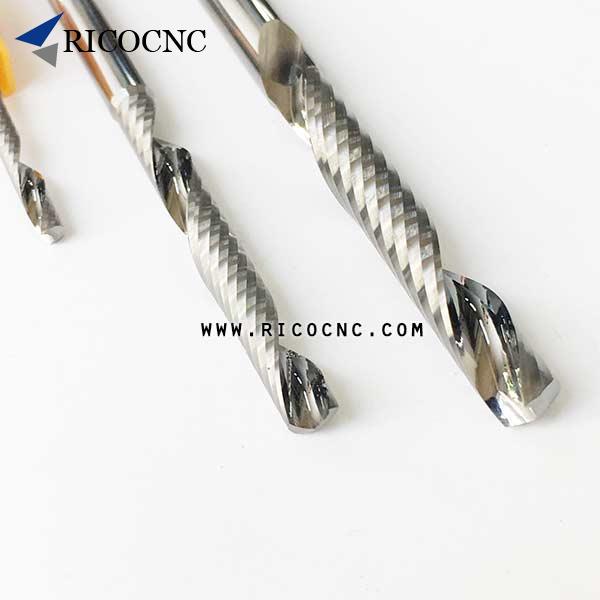

Acrylic plexiglass Cutting Single Flute CNC Router Bits

These solid carbide single flute spiral router bits are made especially for acrylic cutting.
Acrylic sheet is widely known as Plexiglas or Plexiglass, cutting acrylic on a cnc wood router is very popular in advertising signs making industry. But to route a clear edge on acrylic is not easy if you choose a normal wood cutting bits, as cutting and chip removal are much more important.
Standard wood or metal router bits won’t do the best result with chip removal and can cause a rougher cutting edge.

Be sure to use a specialized router bit, specifically designed for cutting acrylic, single flute, spiral up cutter, made from high quality solid carbide. Single flute cutters throw out the plastic chips nicely and there seems to be no or little heating, so no melting or sticking. And specialty design makes extra relief behind the cutting edge to prevent heat build up.

RicoCNC also supplies standard single flute upcut spiral bits, single spiral router bits especially for Aluminum, also single flute compression spiral bits, and other cnc cutter bits and spare parts.

Specialty Single Flute Acrylic Bits Sizes:

Item No	CED	CEL	SHK	OVL
Y1LX3.06	3.175	6	3.175	40
Y1LX3.08	3.175	8	3.175	40
Y1LX3.10	3.175	10	3.175	40
Y1LX3.12	3.175	12	3.175	40
Y1LX3.15	3.175	15	3.175	40
Y1LX3.17	3.175	17	3.175	40
Y1LX3.20	3.175	20	3.175	45
Y1LX3.22	3.175	22	3.175	50
Y1LX3.25	3.175	25	3.175	50
Y1LX3.28	3.175	28	3.175	55
Y1LX3.32	3.175	32	3.175	60
Y1LX412	4	12	4	40
Y1LX415	4	15	4	40
Y1LX417	4	17	4	45
Y1LX422	4	22	4	50
Y1LX425	4	25	4	50
Y1LX428	4	28	4	55
Y1LX432	4	32	4	60
Y1LX442	4	42	4	70
Y1LX512	5	12	5	46
Y1LX517	5	17	5	50
Y1LX522	5	22	5	50
Y1LX525	5	25	5	55
Y1LX617	6	17	6	50
Y1LX622	6	22	6	50
Y1LX625	6	25	6	50
Y1LX628	6	28	6	55
Y1LX632	6	32	6	60
Y1LX642	6	42	6	80
Y1LX652	6	52	6	90
Y1LX6.17	6.35	17	6.35	50
Y1LX6.22	6.35	22	6.35	50
Y1LX6.25	6.35	25	6.35	55
Y1LX825	8	25	8	60
Y1LX835	8	35	8	80
Y1LX845	8	45	8	90
Y1LX855	8	55	8	100
Y1LX1025	10	25	10	60
Y1LX1035	10	35	10	80
