Ballnose Foam Mills Longer Styrofoam Milling Tool for Robot CNC

Ballnose Foam Mills Longer Styrofoam Milling Tool for Robot CNC

Model: Ballnose foam router bits
Brand: RicoCNC
Original: China
Product description: These ballnose extended reach long foam mill router bits are DIY made or custom made cutters for big fast foam block deep CNC machining.
INQUIRY EMAIL

Ballnose Foam Mills Longer Styrofoam Milling Tool for Robot CNC

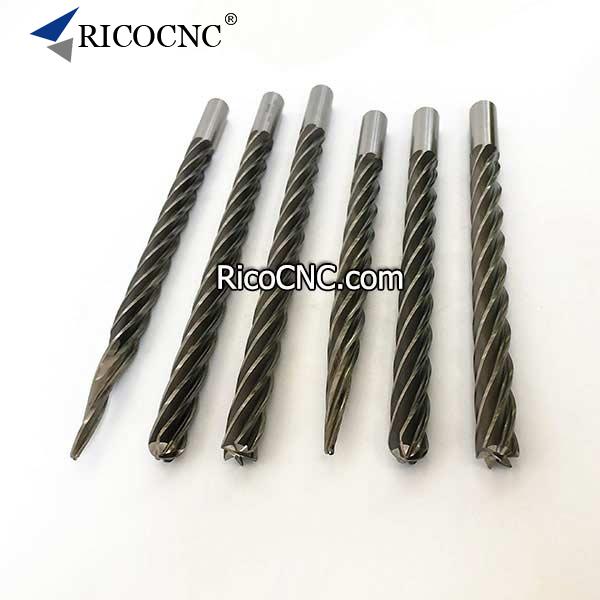

These ballnose extended reach long foam mill router bits are DIY made or custom made cutters for big fast foam block deep CNC machining. The extra-long foam milling tools widely used with big gantry foam mould making cnc router, large 5-axis CNC machine and CNC robots application, for carving, cutting and 3D milling polystyrene foam, EPS foam, XPS foam, EVA foam, Styrofoam, etc.

Long ball end CNC foam tools that let you achieve depth and precision for foam carving applications.

Long Ballend Foam Router Bits Features:
1, High Speed Steel (HSS) hardness: HRC 61-64.5°
2, Sharp spiral blade for clear smooth finishing
3, Extended Reach for deep carving and milling
4, Sphere end and bull nose foam cutters can be made
5, Foam router cutter size could be customized

Diameter: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, etc.

Ball nose EPS Foam Router Bits
Item No.	SHK	CED	Radius	CEL	OVL
D6xR3x100x150 4T	6	6	3	100	150
D8xR4x100x150 4T	8	8	4	100	150
D10xR5x100x150 4T	10	10	5	100	150
D10xR5x150x200 4T	10	10	5	150	200
D12xR6x100x150 4T	12	12	6	100	150
D12xR6x150x200 4T	12	12	6	150	200
D16xR8x150x200 4T	16	16	8	150	200
D16xR8x200x250 4T	16	16	8	200	250
D16xR8x250x310 4T	16	16	8	250	310
D16xR8x300x360 4T	16	16	8	300	360
D16xR8x350x410 4T	16	16	8	350	410
D20xR10x150x200 6T	20	20	10	150	200
D20xR10x200x250 6T	20	20	10	200	250
D20xR10x250x300 6T	20	20	10	250	300
D20xR10x300x360 6T	20	20	10	300	360
D20xR10x350x410 6T	20	20	10	350	410
D25xR12.5x200x250 6T	25	25	12.5	200	250
D25xR12.5x250x300 6T	25	25	12.5	250	300
D25xR12.5x300x350 6T	25	25	12.5	300	350
D25xR12.5x350x400 6T	25	25	12.5	350	400
D30xR15x300xd25x360 6T	25	30	15	300	360
D32xR8x300x360 8T	32	32	8	300	360
D32xR8x350x410 8T	32	32	8	350	410
D32xR8x450x500 8T	32	32	8	450	500
D34xR10x300xd32x360 6T	32	34	10	300	360
D40xR12x300xd32x360 8T	32	40	12	300	360
D40xR12x350xd32x400 8T	32	40	12	350	400
D40xR12x450xd32x500 8T	32	40	12	450	500

RicoCNC supplies a range of durable router bits made specifically for milling EPS, EVA and polyurethane foam, including regular and tapered cutters in ball end and end mill styles. Ball Nose, Flat Bottom (End Mill), conical styles are available.
