CNC ER16 Collects Spring Collets Chucks for CNC Router Spindles

CNC ER16 Collects Spring Collets Chucks for CNC Router Spindles

Model: ER16 Collect
Material: 65Mn Steel
Hardness: HRC44-48
Precision: 0.005mm 0.008mm
Product description: This ER spring collets are used with CNC router machines, hold the cutter bits into the spindle. High precision CNC ER collet system allows to reduce the vibrations on the tools and motors, assure bet
INQUIRY EMAIL

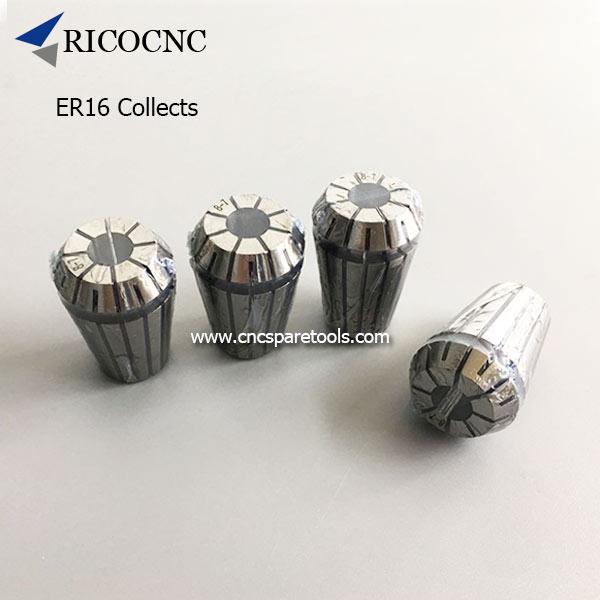

CNC ER16 Collects Spring Collets Chucks for CNC Router Spindles

Model: ER16 collets

This ER spring collets are used with CNC router machines, hold the cutter bits into the spindle. High precision CNC ER collet system allows to reduce the vibrations on the tools and motors, assure better results and prolong the life of the cutter bits and spindle.

ER Collet Chuck Features:
Material: 65Mn Steel
Hardness: HRC44-48
Standard: DIN6499B

Precision: 0.005mm 0.008mm

Model	Outer Diameter	Clamping Diameter(Metric)	Clamping Diameter(Inch)
ER11	11.5mm	3,4,5,6	1/8", 3/16", 1/4"
ER16	17mm	3,4,5,6,7,8,9,10	1/8", 3/16", 1/4", 3/8"
ER20	21mm	3,4,5,6,7,8,9,10,11,12,13	1/8", 3/16", 1/4", 3/8", 1/2"
ER25	26mm	3,4,5,6,7,8,9,10,11,12,13,14,15,16	1/8", 3/16", 1/4", 3/8", 1/2", 5/8"
ER32	33mm	3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20	1/8", 3/16", 1/4", 3/8", 1/2", 5/8", 3/4"
ER40	41mm	3,4,5,6,7,8,9,10,11,12,13,14,15,16…20…25,26	1/8", 3/16", 1/4", 3/8", 1/2", 5/8", 3/4", 1inch
