CW250 Stepper Driver Controller for CNC Router Engraving Machine

CW250 Stepper Driver Controller for CNC Router Engraving Machine

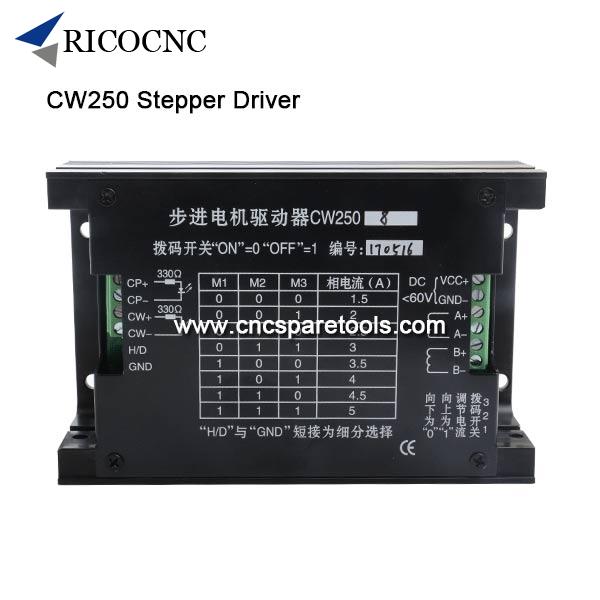

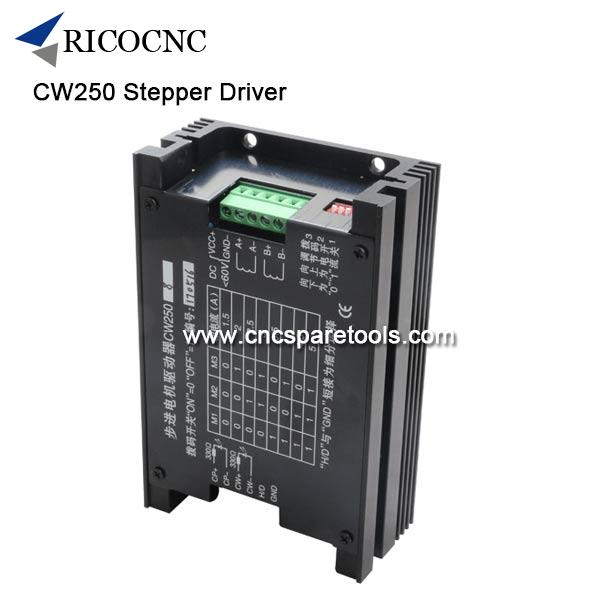

This stepper driver is CW250 2 Phase Microstepping Stepper Motor Driver, 8 subdivide, 20-60VDC 5A, controls the nema23 nema34 stepping motor and 57 86 serial stepper motor, widely used on small size CNC router engraving machines.

CW250 Stepper Driver Parameters:
1, Input Voltage: 20 ~ 60VDC single voltage supply.
2, Phase Current: the current module can be adjusted (0~5A).
3, Drive Mode: full bridge drive.
4, Fine Points: 1/8, 1/2 (the whole step is 1.8 degrees).
5, Operating Characteristics: better than the original motor factory indicators.
6, Protection Form: over heat protection, lock automatic half flow.
7, Size: 140mm * 94mm * 45mm
8, Weight: <500g.
9, Operating Environment: temperature -15 ~ 40
10, Humidity <90%

CW250 Stepper Motor Driver Terminal: (PORTS I/O)
1, VCC: power supply 20~60VDC
Note: avoid more than 60V, so as not to damage the module
2, GND: VCC power supply corresponding ground
3, B+, B-: a phase stepper motor package
4, A+, A-: another phase stepper motor package
(if it is found that the motor runs in the direction of the reverse, only A+, A- can be transferred)
5, CP +, CP -: step pulse input (the rising edge of the effective, duration of >10 S)
6, CW +, CW-: motor running direction control, through the control of the terminal level can be changed motor running direction
7, RST+, RST-: emergency stop reset

RicoCNCalso can supply Leadshine stepping drivers, spindles, and other cnc spares.

Welcome your inquiry.
