CNC Vacuum Pods and Pads

  • VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769
  • VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769
  • VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769
  • VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769
VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769

VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC 10.01.12.00769

  • Model: 120x50x50mm
  • Brand: RicoCNC
  • Original: China
  • Product description: VCBL-K1 120x50x50 L is the longways vacuum block for narrow parts clamping, used with Weeke/Homag/Holz-Her and other PTP CNC machine centre with pod and rail table.
  • INQUIRY EMAIL

10.01.12.00769 VCBL-K1 120x50x50 L Vacuum Suction Block for Schmalz 1-circuit Console CNC

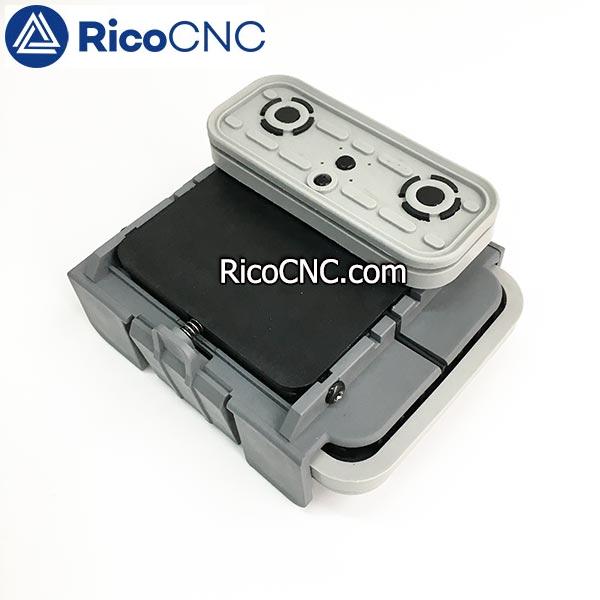

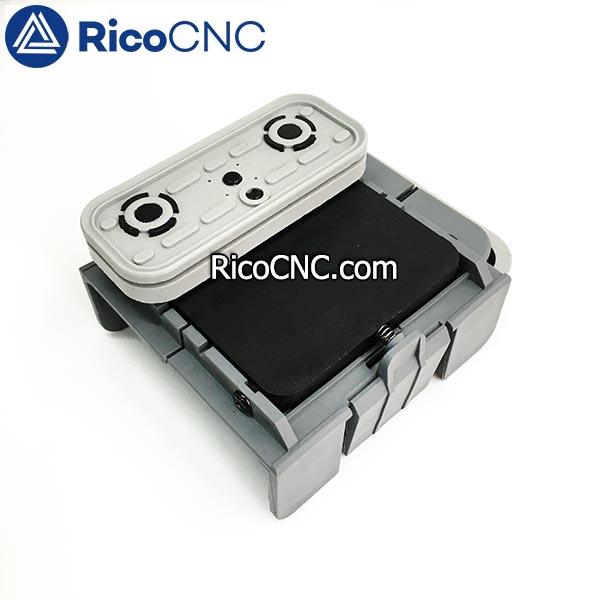

This Schmalz 10.01.12.00769 vacuum pod is a height of 50mm 1-circuit consoles vacuum suction cup. VCBL-K1 120x50x50 L is the longways vacuum block for narrow parts clamping, used with Weeke/Homag/Holz-Her and other PTP CNC machine centre with pod and rail table.

10.01.12.00769 vacuum pod parameters:
VCBL-K1 120x50x50 L
Block vacuum for 1-circuit console Schmalz
Arrangement: lengthways

Upper rubber suction pad Length x Width L x B

120 x 50mm

Height H.

50mm

Bottom rubber suction pad length x width x height

140 x 115 x 16.5mm

VCBL-K1 120x50x50 L 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.

The 10.01.12.00769 vacuum cup comes with a complete entire set.
Also, the top rubber pads 10.01.12.00012 and bottom vacuum pads 10.01.12.00228 are available as replacements.
The 10.01.12.00770 VCBL-K1 120x50x50 Q vacuum blocks also are available here.

A range of CNC vacuum replacement cups and rubber pads for Homag, Weeke, Holz-Her, Biesse, SCM and other brands woodworking machines for sale here. RicoCNC is a reliable source for CNC & Woodworking machine spare parts, welcome to contact us.
